How To Ensure A Good Crimp Quality In Wire Harness And Cable Assemblies

Achieving a good quality crimp joint involves several crucial steps, starting with direct contact between the crimping tool and wire, ensuring proper alignment. When applying pressure, the wire should be tight within the terminal to create secure crimp terminations. During the process of crimping wires, it is vital to ensure that the crimp tab forms a strong mechanical bond with the wire, preventing any looseness.

Additionally, proper handling of insulation is important to avoid damage while maintaining protection for the wire. Selecting the right connectors and following each final step percussion can prevent issues like corrosion, ensuring the connection remains reliable over time. Unlike soldering, crimping provides a durable and efficient solution when the correct equipment is used for the task.

What we cover in this blog?

• Key Takeaways
• Understanding the Crimping Process
• Key Factors for Achieving Good Crimp Quality
• Validating the Crimping Process
• Industry Standards for Crimping
• Avoiding Common Crimping Errors

Key Takeaways

• Use High-Quality Crimping Tools: Invest in the right tools to ensure precision and consistency.
• Follow Correct Crimping Parameters: Adjust for wire size, insulation thickness, and terminal type.
• Conduct Regular Inspections: Verify crimp strength, alignment, and appearance for reliability.
• Perform Pull and Electrical Tests: Ensure mechanical strength and electrical continuity.

Understanding the Crimping Process

The crimping compression process involves several critical steps that require precision and adherence to specifications to produce quality crimps:

Preparation:

• Use a high-quality wire harness and cable assembly designed for the intended application.
• Select appropriate connectors and terminals based on wire size and terminal manufacturer guidelines.

Stripping the Wire:

• Carefully strip the insulation from the wire, ensuring that enough wire is exposed without damaging the copper strands.
• Tools designed for accurate stripping prevent errors like over-stripping or nicking the wire.

Crimping Tools and Machines:

• Use a crimping tool or machine suited to the crimp tab size and type.
• A well-designed crimping tool’s handle provides a firm grip for applying consistent force.

Crimping Execution:

• Align the stripped wire and terminal correctly. Ensure the wire fits securely within the crimp tab.
• Apply adequate pressure during the crimping process to form a strong, sealed link while preserving the integrity of the wire insulation.

Inspection:

• Visually inspect for proper crimp height, wire tightness, and the absence of damaged insulation.
• Confirm that the wires are correctly aligned and that no excessive crimping or under-crimping has occurred.

The Best Wire Harness Manufacturers in India provide high-quality, customized solutions for a variety of industries, ensuring reliability and performance.

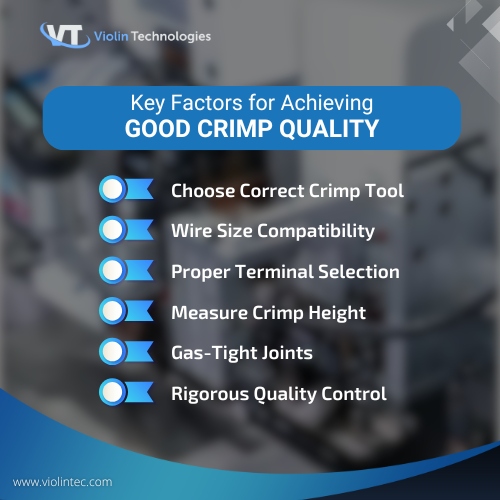

Key Factors for Achieving Good Crimp Quality

Understanding the key factors for achieving good crimp quality is vital to creating durable, reliable bonds in wire harnesses and cable assemblies.

Correct Tooling

It is essential to use the right crimping tools or machines. Always follow the equipment specifications to achieve a uniform crimp.

Wire Size Compatibility

Ensure the wire size matches the terminal specifications. Using mismatched sizes can result in weaker links or excessive pressure, leading to over-crimping.

Material and Terminal Selection

Match the terminal material to the wire. For example, brass terminals are best paired with copper wires. Use connectors and terminals from trusted manufacturers to meet quality standards.

Proper Crimp Height

Measure the crimp height to ensure it aligns with industry specifications. It guarantees a secure mechanical and electrical insulation tie.

Gas-Tight Joints

A Gas-tight crimp is a crucial element in your work, preventing air or moisture from corroding the bond. This knowledge will help you ensure long-term performance in challenging environments.

Quality Control

Conduct regular inspections during the manufacturing process. Perform pull-force testing and resistance measurements to validate crimp integrity.
Contract manufacturers in India offer cost-effective, high-quality production services that meet the needs of various industries and meet global standards.

Validating the Crimping Process

Validation is crucial to ensure that every crimp meets the required quality standards.

• Tool Maintenance and Calibration: Regularly calibrate crimping tools to ensure consistent force application. Inspect the crimping machine for wear or damage.
• Visual and Physical Checks: Verify that no codes are left outside the crimp tab or that the exposed wire is visible. Check that the wire insulation remains intact near the crimped terminal.
• Pull Testing: Apply mechanical pull tests to confirm the connection’s strength. The crimp should withstand specified forces without detaching.
• Cross-Section Analysis: Cut through a crimped terminal and inspect the cross-section under a microscope. It reveals alignment issues, gas tightness, and strand integrity.
• Electrical Testing: Measure the resistance of the crimped connection to ensure proper current flow and avoid overheating.

Custom cable manufacturers in India specialize in providing tailored cable solutions to meet the specific needs of various industries, ensuring high performance and reliability.

Industry Standards for Crimping

Several standards guide crimping wire quality in wire harnesses and cable assemblies:

• IPC/WHMA-A-620: This global standard defines the requirements for cable assemblies and wire harnesses, emphasizing inspection criteria for crimp quality.
• UL Standards: Focus on ensuring safety and reliability in crimped electrical insulation components.
• MIL-Spec Standards: Provide guidelines for high-performance crimping wire in aerospace and military applications.

Avoiding Common Crimping Errors

Avoiding common crimping errors is essential for ensuring strong, reliable electrical insulation connections and maintaining the overall quality of wire assemblies.

• Over Crimping: Applying excessive pressure can deform the connector and damage the wire. Use calibrated tools to prevent this issue.
• Under Crimping: Insufficient pressure leads to weak connections. Check crimp height and gas tightness to ensure proper force application.
• Improper Stripping: Stripping too much insulation exposes wire unnecessarily, while inadequate stripping prevents full contact.
• Mismatched Components: Always match cable thickness, connector, and crimping tool specifications to avoid faulty crimps.

Conclusion

By focusing on proper material selection, adhering to industry standards, and employing regular quality control measures, manufacturers can minimize defects and improve efficiency. Using the right tools, effectively training operators, and validating crimps with rigorous testing ensure consistency and reliability. Prioritizing these practices not only enhances product quality but also builds trust with customers, contributing to overall operational success. This approach ensures that you produce robust, reliable electrical insulation connections that stand the test of time.

FAQ’s

How can I ensure consistent crimp quality across a large manufacturing process?

Regularly calibrate tools, use automated crimping machines where possible, and implement thorough inspection protocols at each step of production.

How do crimping and soldering differ in terms of technique and application?

Crimping creates a mechanical and electrical connection through pressure, while soldering joins components using melted solder. Crimping is faster and often preferred for high-volume production.

Can over-crimping damage electrical components?

Yes, excessive force can deform connectors and damage wire strands, compromising connection quality.

What is the significance of air-tight joints in crimping?

Air-tight joints prevent corrosion, maintain electrical conductivity, and ensure long-term reliability of the crimp. This is particularly important in challenging environments where exposure to air or moisture may cause premature failure of the connection.
