Chamfers Vs Radii In Sheet Metal Fabrication: Know The Difference

In sheet metal fabrication, design characteristics such as chamfers and radii play a crucial role in the finished product’s functionality and visual appeal. These features are often implemented to modify edges or corners, enhancing the overall performance of the part. Understanding the differences between chamfers and radii is essential for engineers, manufacturers, and designers, as they impact everything from stress distribution to ease of assembly. This blog will delve into the key distinctions between chamfers and radii and discuss how they influence the production process.

What we cover in this blog?

• Key Takeaways
• What Are Chamfers And Radii?
• Main Differences Between Chamfers And Radii
• Benefits Of Chamfers In Sheet Metal Fabrication
• Benefits of Radii in Sheet Metal Fabrication
• When To Use Chamfers And Radii

Key Takeaways

• Chamfers create a beveled edge, often for aesthetic purposes or to eliminate sharp corners.
• Radii provide a smooth, rounded edge, enhancing durability and safety.
• Chamfers are ideal for assembly fitment and ease of handling.
• Radii improve stress distribution and reduce the risk of cracks in sheet metal.

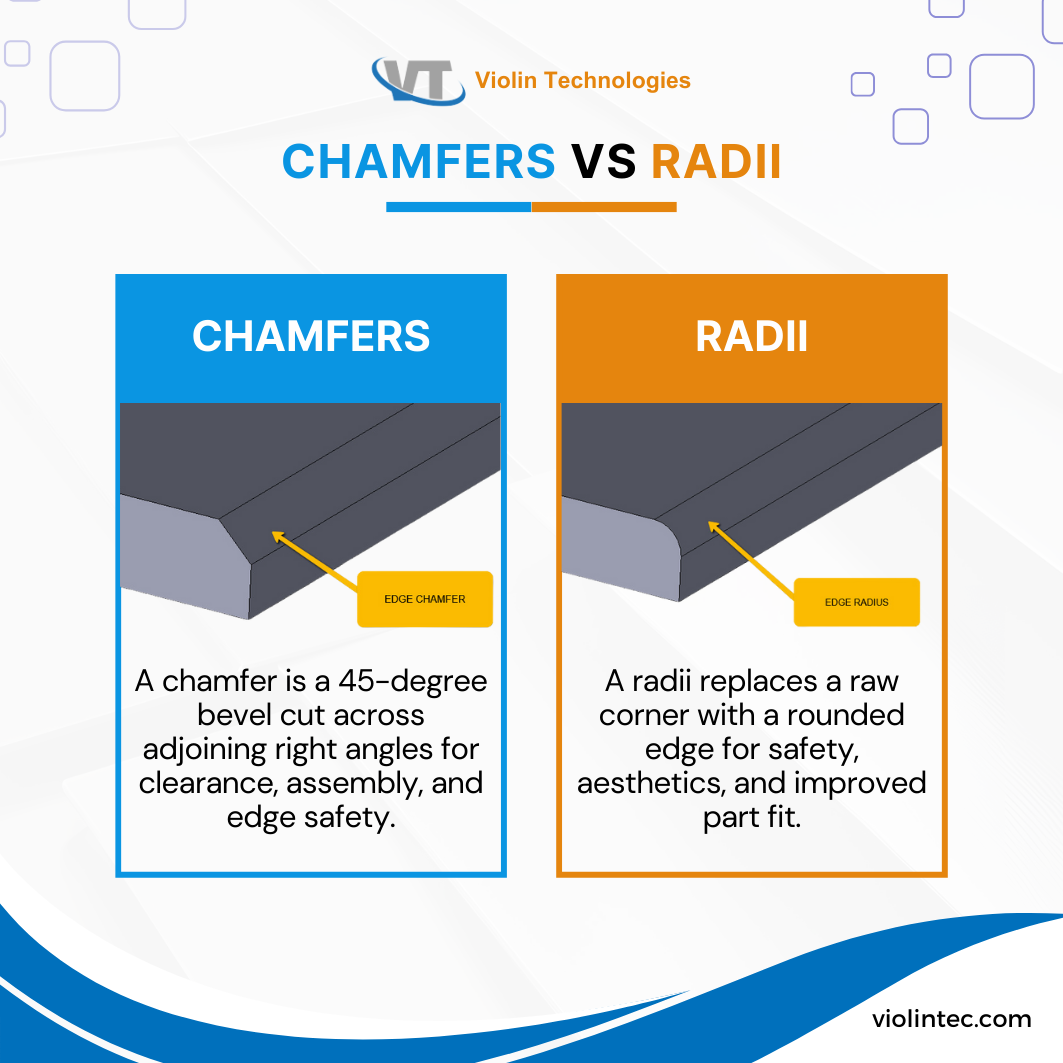

What Are Chamfers And Radii?

Chamfers and radii are two common types of edge treatments used in sheet metal fabrication and other production processes. Both serve to modify sharp edges, but they do so in different ways.

Chamfered edges

A chamfer is an angled edge that replaces a sharp corner with a sloped edge. This bevel typically forms a 45-degree angle to two surfaces, effectively breaking sharp corners and creating a beveled edge. Chamfers are often used for visual appeal, ease of assembly, and safety, as they help relieve stress at the corners and prevent rapid deformation under pressure.

Radius (Fillet)

A radius, also known as a fillet, refers to a rounded edge or corner. Instead of a sharp angle, a radius features a smooth, curved transition between two surfaces. Radii are ideal for spreading stress more evenly and preventing pointed corners, which can be points of stress concentration.

Main Differences Between Chamfers And Radii

The primary differences between chamfers and radii are their shape, angle, and application. Chamfers create sharp angles, typically 45 degrees, between two surfaces, while radii form rounded corners that can vary in size. Here’s a closer look at their distinctions:

Shape and Design elements

Chamfers produce a sloped or beveled edge, often forming a pointed angle between two surfaces.

Radii creates curved corners, which are smoother and less abrupt.

Stress Distribution

Chamfers help in stress distribution over a larger surface area. However, the pointed angle may lead to stress concentration if not designed properly.

Radii help distribute stress, especially in stressed parts, evenly along the curved surface.

Ease of Assembly

Chamfers are commonly applied to simplify the assembly of mating components. Their beveled edge allows for easier alignment and assembly.

Radii are beneficial for fluid movement, particularly when parts need to slide or rotate against each other, as curved corners reduce friction.

Aesthetic Appeal

Chamfers are often preferred for their sharp and clean appearance, adding a professional touch to the design.

Radii offers a smoother, more flowing design, which is ideal for products where aesthetics are a priority.

Manufacturing Costs

Chamfers, due to their sharp edges, can often be produced with a single tool and are cost-effective in terms of production costs.

Radii may require different tools for different curved edge sizes, potentially increasing production time and cost.

Custom Sheet Metal Manufacturers understand the importance of selecting the right edge treatment, whether it’s chamfers or radii, to meet their clients’ specific needs.

Benefits Of Chamfers In Sheet Metal Fabrication

Adding chamfers to sheet metal parts offers several advantages. One key reason for using chamfers is to eliminate sharp edges, minimizing injury risks and enhancing the safety of the final product. Chamfered edges also help to reduce stress concentrations at the corners, which can be critical in preventing material failure, especially in parts subjected to high-stress environments.

In addition to safety and stress relief, chamfers are particularly useful for ease of assembly. They create a sloped edge that helps align and guide mating parts into place during assembly. Chamfers can also improve the efficiency of the fabrication process by allowing for faster and more accurate assembly, reducing the need for additional alignment or tooling.

Benefits of Radii in Sheet Metal Fabrication

Radiused or rounded edges are particularly beneficial in preventing stress concentration at the corners of a part. Sharp corners are notorious for being weak points in mechanical designs, as they are more likely to crack or fail under pressure. By adding radii, engineers can evenly spread stress across the part, preventing rapid deformation and increasing its overall strength and longevity. Radii also improves the aesthetic appeal of sheet metal parts. Rounded corners offer a softer, more pleasing visual transition, which is often desirable in consumer-facing products.

As a trusted Sheet Metal and Stamped Parts Supplier, we ensure that every part undergoes rigorous testing and incorporates the best design features, such as chamfers and radii.

When To Use Chamfers And Radii

Both chamfers and radii are valuable in different contexts, and the decision to use one over the other depends on various factors, including the part’s design, functionality, and production costs.

Chamfers are ideal when you need to:

• Create precise, beveled edges for a sharp, professional appearance.
• Facilitate the hassle-free assembly of mating components.
• Add an edge break to prevent sharp corners that could cause injury or damage.
• Use a cost-effective fabrication process that requires fewer tools.

Radii are preferable when:

• Stress distribution and strength are priorities, especially in stressed parts.
• A smoother aesthetic or ergonomic design is needed.
• Parts need to slide or move smoothly during assembly.
• A tighter tolerance is required for the mating parts to ensure an optimal fit.

Engineers tend to prefer a larger radius or convex fillet for outside edges to ensure a smooth edge break, making pin insertion, drive screw alignment, and lead-in transitions more cost-efficient, even when using a different radius or rounded ones.

When working with the Best High-Level Assembly Manufacturers, the precision of chamfers and radii can significantly impact the ease of assembly and the final product’s durability.

Conclusion

Chamfers and radii are essential features in sheet metal fabrication, each offering distinct advantages depending on the design and functional requirements. Chamfers are particularly beneficial for creating sharp angles and making assembly easier, while radii offer superior stress relief and smoother movement for mating parts. By understanding the differences between these edge treatments, manufacturers can produce items that are not only economical but also functional, durable, and aesthetically appealing.

Frequently asked Questions

1. What is the main difference between a chamfer and a radius in sheet metal fabrication?

A chamfer creates a beveled edge, while a radius forms a curved corner. Chamfers offer sharp edges, while radii provide stress relief.

2. Why are chamfers important in sheet metal fabrication?

Chamfers break sharp edges, distribute stress at corners, and improve assembly ease and aesthetics.

3. What are the benefits of adding a radius to sheet metal parts?

Radius edges distribute stress evenly, prevent cracks, and improve strength, durability, and seamless movement in mating parts.

4. When should I use a chamfer versus a curved edge in my designs?

Use chamfers for sharp angles and easier assembly, and radii when stress relief and smoother transitions are needed for durability.
