Understanding Broaching Process: Types, Advantages, Applications

by | Mar 13, 2025

Broaching is a unique and essential technique in precision machining that stands out with its use of a multi-toothed cutting tool, the broaching tool. This tool, unlike others in the field, is designed for the creation of intricate and accurate shapes on various materials. It is the pinnacle of precision in metal-cutting techniques and holds tremendous significance in the manufacturing process of parts that require high-precision cutting.

Broaching is a unique approach. It involves a broaching tool featuring several cutting edges employed to extract material with accuracy, precision, and control. It enables the formation of intricate shapes, both internal and external, with remarkable accuracy and consistency.

Key Takeaways

  • Broaching types include internal, external, surface, and rotary broaching for diverse machining needs.
  • Broaching process ensures high precision, smooth finishes, and fast production with minimal material waste.
  • It is mainly used in automotive, aerospace, and manufacturing industries for gears, keyways, and splines.
  • It is ideal for producing complex shapes with tight tolerances in a single pass.

Understand Broaching Process

The broaching process is a technique used in metal fabrication that involves a multi-toothed cutting tool called a broaching tool. It removes material using a series of teeth in a single pass, which allows for both high precision cutting and production efficiency. The workpiece is usually moved past or through the broaching tool, which gradually removes material to achieve the desired shape. Broaching is known for its ability to create complex shapes, such as keyways, splines, and gears, with superior precision compared to other processes.

Broaching Types

Each type is designed for a particular function depending on the geometry and features needed for the final part. Let’s look at the main broaching types.

Internal Broaching

It involves using a broaching tool to cut the inside of a workpiece. This type of broaching is commonly used to create features such as spline holes, bushings, and bearing seats. The tool is passed through the internal area of the part, gradually removing material to create the desired shape.

External Broaching

It is used to cut the outer surface of a workpiece. This type of broaching is often used to create external features like keyways, gears, and splines on shafts and other components. External broaching provides high tool efficiency and allows for the rapid removal of material to create precise external shapes.

Surface Broaching

It is employed to cut or finish flat or contoured surfaces of a workpiece. This approach is perfect for obtaining a premium-quality surface finish and is commonly used in the production of parts with intricate shapes or detailed surfaces. It can be used for keyway cutting, gear finishing, and shaping applications, where a smooth, uniform surface is crucial.

Linear Broaching

It is the most traditional form of broaching. The broaching tool moves in a straight line over the surface of the workpiece to remove material. It is typically used for cutting keyways, slots, or other linear features in components. Linear broaching is suitable for high-volume production, making it a cost-effective and time-efficient choice for metal fabrication.

Rotary Broaching

It involves a rotating tool that cuts non-linear shapes in the workpiece. Unlike linear broaching, which works in a straight line, rotary broaching creates intricate shapes such as hexagonal holes, spline grooves, and internal threads. This type of broaching is ideal for creating features that would otherwise be challenging to produce using traditional machining techniques.

Many industries rely on high-quality Precision Machined Components in the USA to ensure the accuracy and durability of their products.

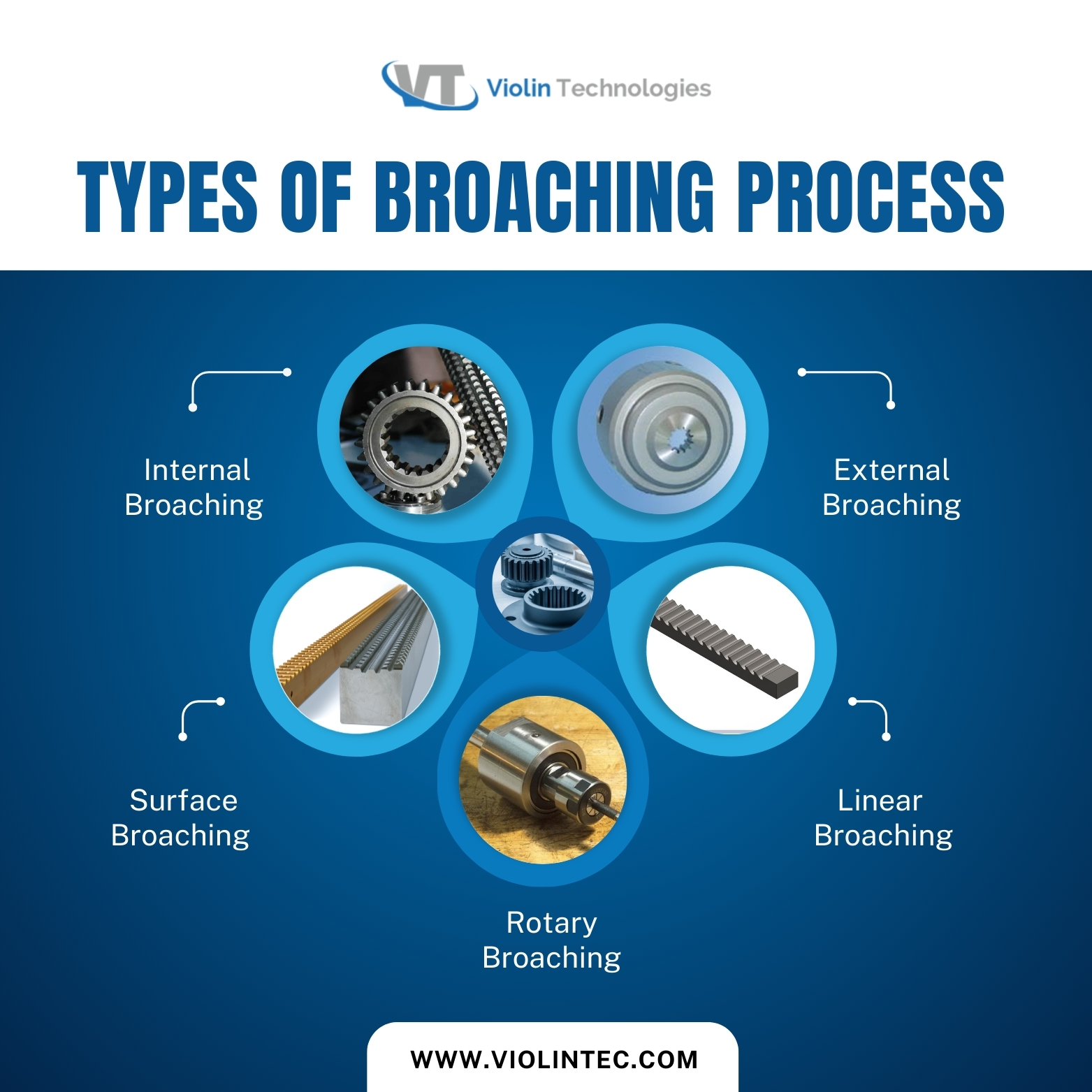

Types of Broaching process

Advantages of Broaching Process

The broaching process offers several key advantages, making it the top choice for precision machining in industries where accuracy and speed are essential. Some of the main broaching advantages include:

1. High-Precision Cutting

One of broaching’s most significant advantages is its ability to achieve high-precision cutting. Because the tool has multiple cutting edges that work simultaneously, the process delivers consistent, accurate results.

2. Tool Efficiency

Broaching tools are designed for high tool efficiency, meaning they can cut through materials quickly while maintaining their sharpness and effectiveness. This efficiency makes broaching an economical choice for both small-scale and mass-production environments.

3. Cost-Effective for High-Volume Production

Due to its high-speed capabilities and tool efficiency, broaching is a cost-effective process for high-volume production. Unlike other methods like milling or turning, broaching can manufacture a high volume of parts quickly with minimal tool wear, showcasing the process’s productivity and cost-effectiveness.

4. Versatility in Material Types

Broaching can be used on a wide range of materials, including steel, aluminum, brass, and titanium alloys. Whether the material is hard or soft, broaching can handle it effectively, demonstrating the process’s adaptability and flexibility.

The best contract manufacturers in India provide exceptional quality, cost-effective solutions, and timely delivery for businesses across various sectors.

Industrial Applications of Broaching

The broaching process is utilized across various industries that demand high accuracy and efficiency. Some of the main industrial applications include:

  • Automotive Machining: In the automotive machining industry, broaching is used to produce a wide range of parts, including gears for transmissions, keyways for shafts, spline shafts for power transmission, and internal and external profiles for various components.
  • Aerospace Components: The aerospace sector greatly depends on broaching to manufacture parts such as turbine blades, engines, wing spars, and landing gear components.
  • Metal Fabrication:Broaching is a versatile tool in metal fabrication. It creates a wide variety of parts, including bushings, bearings, and shafts. It is particularly valuable for high-volume production of parts with consistent dimensions and fine surface finishes.
  • Medical Devices:Accuracy is essential in the medical field, and broaching is used to produce intricate, high-quality parts such as surgical instruments, implants, and medical device components.

The best high-level assembly manufacturers are known for their expertise in producing complex, precision-engineered assemblies that meet the highest industry standards.

Conclusion

The broaching process, a highly efficient and versatile metal-cutting technique, is critical in precision machining. With its various broaching types, including internal broaching, external broaching, surface broaching, linear broaching, and rotary broaching, this process can cater to a wide range of manufacturing needs. Its advantages, including high-precision cutting, tool efficiency, and cost-effectiveness, make it an essential process in industries like automotive machining, aerospace components, and metal fabrication.

Frequently Asked Questions

1. How do internal and external broaching differ?

Internal broaching is used to cut the inner surfaces of a workpiece, such as holes or internal features like splines. External broaching, on the other hand, is used to cut the outer surfaces of parts, creating features like keyways and gears.

2. What materials can be broached?

Broaching works with various types of materials, including steel, aluminum, brass, titanium, and other alloys. It is especially useful for cutting tough metals that are challenging to machine using alternative methods.

3. What is rotary broaching, and how does it differ from linear broaching?

Rotary broaching uses a rotating tool to create non-linear shapes like hexagonal holes or internal threads. Linear broaching, in contrast, involves moving the broaching tool along a straight path to cut linear features like keyways.

4. What are the key advantages of the broaching process over other machining methods?

Broaching offers high-precision cutting, tool efficiency, improved surface finishes, and cost-effectiveness for high-volume production.
