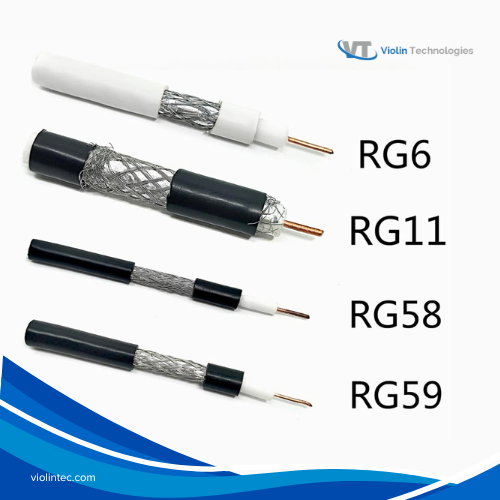

Coaxial Cable Comparison: RG6 Vs RG58 Vs RG59 Vs RG11

These coaxial cables come in different types, such as RG6, RG58, RG59, and RG11, each designed to handle specific needs. The center conductor, usually made of copper, plays a crucial role in transmitting signals efficiently.

RG 6, an industry-standard cable, is known for its thicker construction, which provides better signal integrity and reduced loss over long lengths. In contrast, RG 58, with its thinner profile, is often used in cellular boosters and other specialized applications. When selecting a coaxial cable, factors such as the type of cable, connector compatibility, and intended use—whether for indoor or outdoor applications—must be considered to ensure optimal performance and reliability.

For optimal installation across the entire network, use RG 11 for its thicker cable and 75-ohm rating in places where flexibility is less critical. In contrast, RG 6 or RG 59 can be used for more flexible applications, ensuring all connectors and wires match the correct RG number and impedance—note that RG6 is 75 ohms. In contrast, RG59 and RG11 are also 75 ohms, but RG11 is thicker, and RG58 is 50 ohms, and all should be chosen based on the required performance and flexibility.

What we cover in this blog?

• Understanding Coaxial Cables
• Coaxial Cable Advantages
• Types of Coaxial Cables
• Choosing The Right Coaxial Cable

Understanding Coaxial Cables

A coaxial cable wire is a specialized transmission line designed to handle high-frequency electrical signals. It features a copper core conductor, dielectric insulation, and a conductive outer shield to block external interference, ensuring a clear and consistent transmission.

Coaxial cables are built with several layers to ensure effective signal transmission. At the heart of the cable is the inner conductor, usually made of copper, which carries the radio frequency signals. Surrounding this is dielectric insulation that separates it from the shielding layer. The shielding, often a braided metal layer, helps to reduce electromagnetic interference (EMI). The outermost layer is a protective jacket that protects the coaxial cable from environmental damage. This multi-layered design helps maintain high transmission integrity, making coaxial cables ideal for long-distance transmission lines in various networks.

Coaxial Cable Advantages

High-Frequency Capability: Excellent for transmitting signals.

Low Signal Loss: Maintains transmission quality over longer distances.

Versatility: Suitable for many applications, from cable TV to data networks.

Signal Quality: Coaxial cable is great at maintaining signal strength over long distances, making them ideal for TV antennas and high-speed internet.

Transmission Speed: They handle large data transfers quickly, which is essential for modern communication networks.

Reduced EMI: Coaxial cable shielding minimizes EMI, ensuring consistent signal quality even in noisy electrical environments.

Durability: Especially in outdoor cables, they’re built to withstand harsh conditions and provide reliable performance.

Contract Manufacturers in India provide comprehensive production solutions, helping businesses streamline their manufacturing processes with high-quality and cost-effective services.

Types of Coaxial Cables

There are four popular coaxial cable types: RG6, RG58, RG59, and RG11. Let us know in detail about them.

RG6- The universal coaxial cable suitable for most applications

• Industry Standard: Commonly used for cable TV, satellite TV, and internet connections.
• Construction: Thicker than RG59, providing better indicator quality and less transmission drop.
• Applications:Great for outdoor use due to its durability.
• Frequency Handling: Effective for high-frequency signals.
• Impedance: Usually 75 ohm.
• Gauge: 18 AWG

RG59- A traditional cable still in use for radio antennas

• Comparison to RG6: Thinner and less expensive.
• Applications: Often used for security cameras, CCTV, radio antennas, and televisions.
• Limitations: Not ideal for long distances because of higher sign reduction.
• Impedance: Typically, 75 ohm wire.
• Gauge: 22 AWG

RG58- Ideal for signal amplification in low-frequency audio applications.

• Flexibility: Thinner and more flexible but with higher sign degradation compared to RG6 and RG59.
• Impedance: 50 ohm wire, suited for different applications.
• Applications: Common in cellular base stations and other RF communications.
• Distance Suitability: Best for shorter cable runs.

RG11- A Cable for External Use When More Specification Is Needed

• Thickest Option: Provides superior communication quality and minimal loss over long distances.
• Applications:Perfect for outdoor installations due to its robust construction.
• Data Transmission: Handles high-speed data transfer.
• Impedance: Generally 75 ohms.
• Gauge: 14 AWG

Choosing The Right Coaxial Cable

Selecting the right coaxial cable depends on several factors:

• Application: What will the cable be used for (TV, internet, security systems)?
• Distance: How long will the cable run be?
• Signal Frequency:What frequency range should the cable support?
• Impedance: Does the cable need to match the impedance of connected devices?

General Recommendations

• RG6 is a versatile choice suitable for most home and small business uses.
• RG59 works well for shorter TV antenna connections.
• RG58 is ideal for specific applications like cellular cell towers.
• RG11 is best for long-distance, high-quality indicator transmission.

Custom Cable Manufacturers in India offer tailored solutions for various industries, ensuring high performance and reliability.

Differences Between RG 59, RG 6, and RG 58

RG6 vs RG59

• RG59 is thinner, leading to higher signal loss, making it less suitable for long runs. It’s commonly used for TV antennas.
• RG6 is thicker, offering better signal quality and less loss, making it the standard for cable TV, satellite TV, and the internet.

RG58

• RG58 is thinner than both RG59 and RG6 and has even higher signal loss. It’s designed with a 50-ohm impedance and is often used for radio communications rather than long-distance runs.

The Best Grade of Coaxial Cable

The “best” coaxial cable depends on your needs:

• RG6 is often the go-to for most home and commercial applications due to its balance of flexibility, low signal loss, and performance.
• RG11 excels in long-distance, high-frequency transmissions but can be harder to install.
• RG59 is suitable for short-distance, low-frequency applications like CCTV.
• RG58 is best for radio communications, where flexibility is more important than distance.

The Best Contract Manufacturers in India offer top-quality, cost-effective production services, making them ideal partners for reliable manufacturing solutions.

Conclusion

Selecting the right coaxial cable involves considering factors like distance, frequency, and application. RG6 cable is a versatile choice for most home and commercial uses, including TV antennas and internet connections. RG 59 and RG 58 cater to specific needs like short-distance video signals and radio communications. RG 11, while bulkier, offers excellent performance for long-distance, high-frequency transmissions. Each type of cable has its strengths, ensuring that there’s a suitable option for every requirement.

FAQs

What does the “RG” in coaxial cables stand for?

“RG” stands for Radio Guide, a term used originally by the military. The number following “RG” indicates the cable’s specific characteristics and thickness.

Can I use RG58 instead of RG6 for my TV antenna?

No, RG6 cable is preferred for TV antennas due to its better performance over high frequencies and longer distances. RG 58 is designed for radio communications.

Is RG 11 harder to install than RG 6?

Yes, RG 11 is thicker and more rigid, which makes installation more challenging, particularly in tight spaces. However, it offers superior performance for long-distance runs.

Which coaxial cable should I use for outdoor antennas?

RG 6 or RG 11 are the best choices for outdoor antennas, as they are designed to handle longer distances and resist interference better than other types.
